1. Fast detection speed and high accuracy
2. Magnetic detection data can be uploaded to the system
3. Support manual and robot loading and unloading
4. Manually press the start button, and the product can automatically run the magnetic detection of the meter
5. Detect the four characteristics of magnetic pole peak value, area, angle, and skewed pole angle

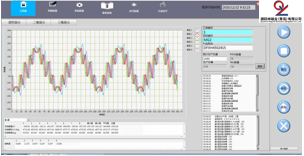

6. Stable magnetic data, with a large number of collected points, collecting 10000/36000 points per week
project | Technical Specifications | Remarks |
input power | AC220V±5% 50/60Hz | |
input current | ＜ 20A | |
rated power | ＜ 5KW | |
minimum resolution | 0.01mT | |
Detection range | 0-10T | |
Device color | RAL7035 | customizable |
Compatibility range | Product outer diameter: 20-100mm Iron core height: 20-100mm Product total length: 50-350mm | |
Equipment noise | ≤ 75dB | |

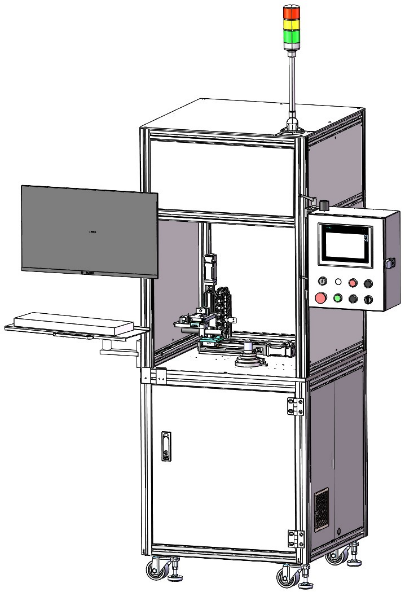

Device dimensions | Approximately 650 × 700 × 1800mm in length, width, and height | |
changeover time | ≤ 15min | workwear |
one | Environmental temperature: 0 ℃~40 ℃; |
two | Environmental humidity<80% (no condensation allowed); |
three | Factory height (column top height): 2.5m; |
four | Ground load:>500KG/㎡; |
five | Dimensions of the transportation door for factory equipment: width 1000 x height 2000mm; |
six | No dust, no oil fumes, no salt, no dripping water; |
seven | Avoid direct sunlight exposure; |
eight | No flammable or corrosive liquids or gases; |
nine | No impact or high-frequency vibration; |
ten | Location of use: Workshop open environment. |
